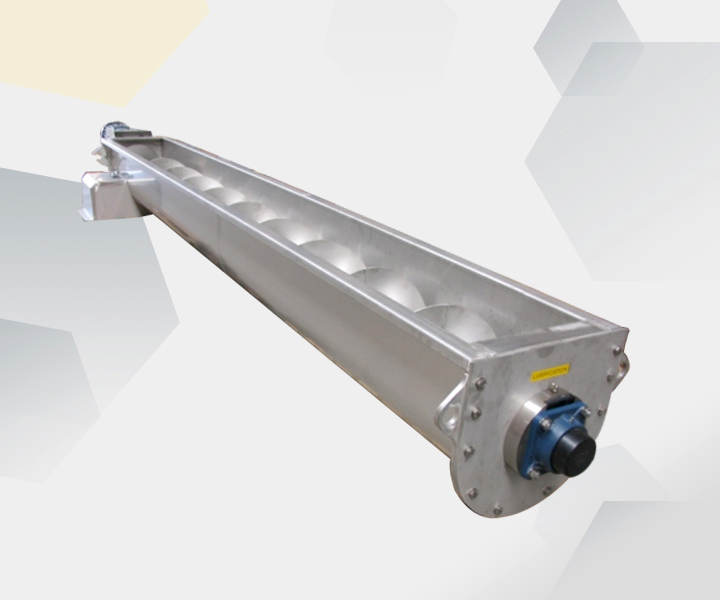

Stainless Screw Conveyor

Q: Why is stainless steel more expensive than carbon steel?

A: Because the durability, if your material is strongly corroded or easy to wear equipment, you can choose this one.

Q: Is there a warranty?

A: Yes, we offer a one-year warranty and customer experience tracking service to solve all your usage problems.

Working Principle

Stainless screw conveyor can convey material efficiency easily over traditional shaft spiral conveyors and belt conveyors.

Especially for semi-fluid and viscous materials and which easily bend and block materials and materials transport advantages are obvious. In addition, we use AISI 304 stainless steel to build the conveyor, the durability is upgraded, even if it is strong corrosion, wear, high temperature materials we can successfully deal with.

BENEFITS

Few components

Small floor space

Odorless operation

High efficiency

Completely empty

Highly purified themselves

Easy access and cleanliness

Low maintenance

COMPSITION

Main Component

Drive, Shall, Lining Board, Blade without Shaft, Cap

Tilt Angle

The highest inclination angle is 45 degrees.

Placement Mode

Mobile Device and Staionary Device

WHAT IS OUR BUSINESS SCOPE?

Suger factory	Fish factory
Meat processing plants	Abattoirs
Building Materials	Chemical

Technical parameters

In addition to the specifications of the following technical parameters, provide different customized services according to your needs!

LS type	GX type)	Delivery QΦ=0.33（m3/h）	Power Pd 1=10m（KW）)	Power Pd 1=30m（KW）	Revolving speed（r/min）	Delivery QΦ=0.33（m3/h）
100		2.2	1.1	1.6	120	1.9
160		7.6	1.5	2.8	90	5.7
200	200	11	2.2	3.2	75	18
250	250	22	2.4	5.3	75	18
315	300	36.4	3.2	8.4	60	29.1
400	400	66.1	5.1	11	60	52.9
500	500	93.1	4.1	15.3	45	69.8
630		60	160	8.6	25.9
800		223	12	36	35	174
1000		304	16	48	30	261
1250		458	24.4	73.3	20	305
