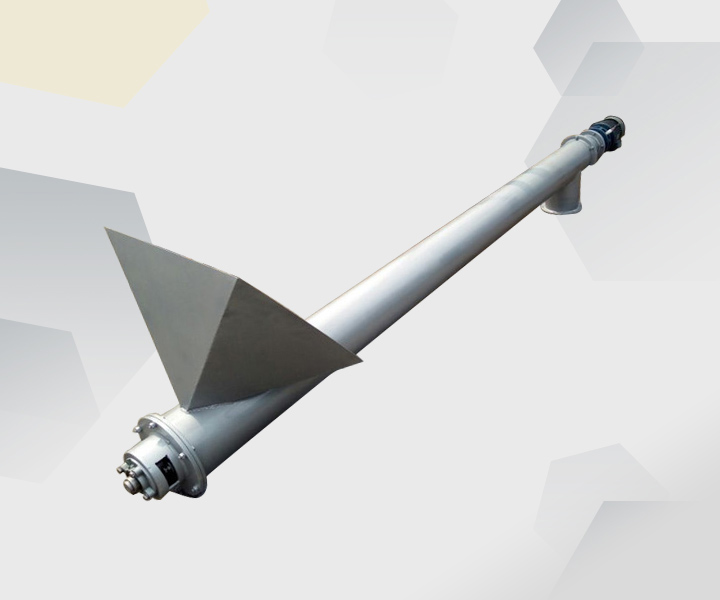

Powder Conveyor

Q: Is the output high?

A: Maximum 130 tons per hour, because the volume is small, so throughput is small.

Q: Is there a vertical type?

A: Yes.Our vertical conveyor can reach up to 20 m



Working Principle

Powder conveyor has simple structure, convenient maintenance and installation, small occupation area, completely closed transportation, less powder, reliable transportation, stable, easy to operate and other characteristics. When the spiral with angular velocity omega rotation, spiral surface material particles under the action of centrifugal force to the shell wall movement, so as to increase the pressure on the shell wall, that is to produce greater friction on the shell wall.

BENEFITS

Few components

Small floor space

Odorless operation

High efficiency

Completely empty

Highly purified themselves

Easy access and cleanliness

Low maintenance


[field:title/]
WHAT IS OUR BUSINESS SCOPE?
Solid waste treatment Pulp
Environmental Protection Chemical
Building Materials Agriculture



Technical parameters

In addition to the specifications of the following technical parameters, provide different customized services according to your needs!

LS type GX type) Delivery QΦ=0.33(m3/h) Power Pd 1=10m(KW)) Power Pd 1=30m(KW) Revolving speed(r/min) Delivery QΦ=0.33(m3/h)
100   2.2 1.1 1.6 120 1.9
160   7.6 1.5 2.8 90 5.7
200 200 11 2.2 3.2 75 18
250 250 22 2.4 5.3 75 18
315 300 36.4 3.2 8.4 60 29.1
400 400 66.1 5.1 11 60 52.9
500 500 93.1 4.1 15.3 45 69.8
630   60 160 8.6 25.9
800   223 12 36 35 174
1000   304 16 48 30 261
1250   458 24.4 73.3 20 305
