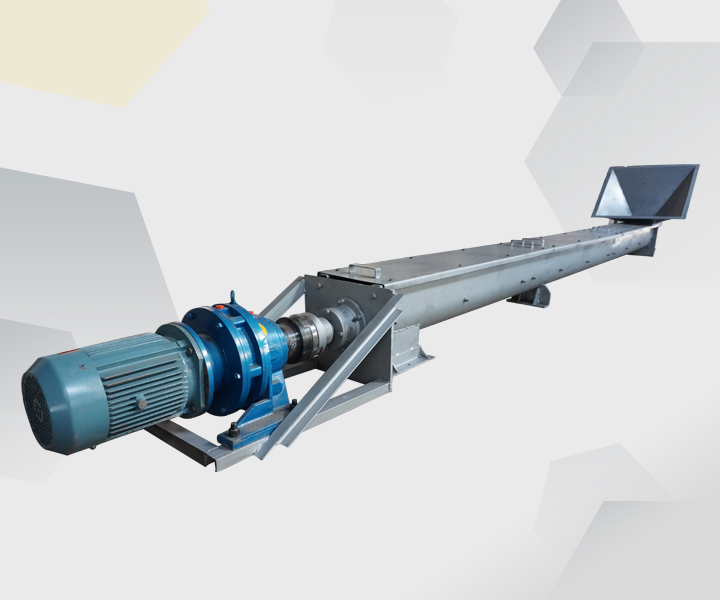

Grain Auger Conveyor
Q: Is the equipment hygienic?
A: Yes! We equipped the clean device ensure your hygienic requirements.
Q: Will it clog up?
A: No. Gravity and friction carry animal feed forward and are not easily blocked.
Working Principle
Grain auger conveyor. In order to design the best grain screw conveyor, we have adopted world-class manufacturing equipment and high-skilled R&D team. Every detail of the screw drill has been designed for today's demanding large-scale farms and commercial operators, and various performances have been continuously improved in the strict requirements of customers.
BENEFITS
Better durability
No occupy your space
Reasonable design
Great sealing
Economical price
Absolute hygiene
![[field:title/]](/uploads/190802/1-1ZP210341T18.jpg)
| Horizontal Conveyor |
| Single machine length of 60 m and the material flow can be controlled by adjusting its rotational speed. |
| Inclined Conveyor |
| The highest inclination angle is 45 degrees.The installation position of motor can be diversified and unrestricted. |
| Vertical Conveyor |
| Single machine height of 3-20m and small circulation area are not suitable for transporting materials which are easy to deteriorate, sticky and caking. |
WHAT IS OUR BUSINESS SCOPE?
| Beverage | Fruit |
| Fish | Meat |
| Vegetable | Grain |
Technical parameters
In addition to the specifications of the following technical parameters, provide different customized services according to your needs!
| WLS type | Screw pitch(mm) | Rotation speed(r/min) | Transportation volume QΦ=0.33(m3/h) |
| 100 | 100 | 120 | 1.9 |
| 160 | 160 | 90 | 5.7 |
| 200 | 200 | 75 | 18 |
| 250 | 250 | 75 | 18 |
| 315 | 315 | 60 | 29.1 |
| 400 | 355 | 60 | 52.9 |
| 500 | 400 | 45 | 69.8 |
| 630 | 450 | 45 | 125 |
| 800 | 500 | 35 | 174 |
| 1000 | 560 | 30 | 261 |
| 1250 | 630 | 20 | 305 |
