Dirt Conveyor
Q: How big is the diameter?
A: From 100 mm to 1250 mm
Q: What type of stainless steel material is it?
A: AISI 304 and 316L
Wworking Principle
A high quality conveyor for dirty things with cheap price.

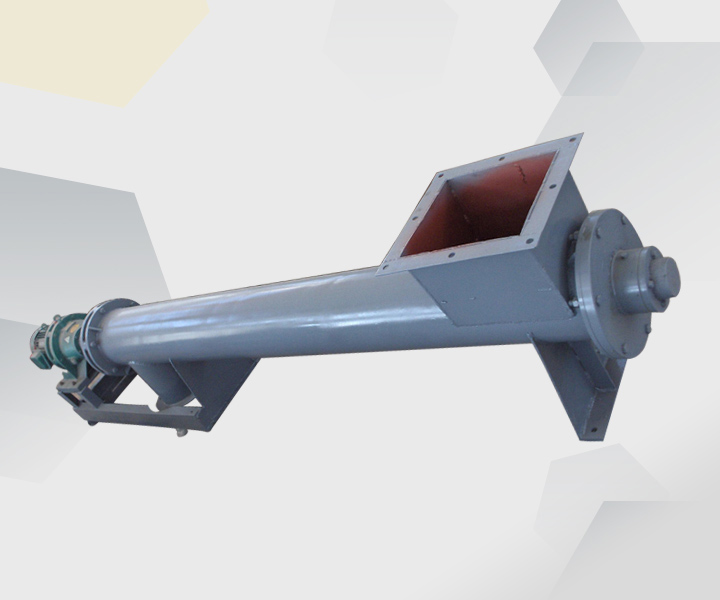

Dirt conveyor has a larger volume capacity, and is likely to deal with particularly difficult materials, such as easily entangled materials or materials with high variable particle size. The material properties, extra thickness and special manufacturing process make the screw highly resistant and durable. Because there is no intermediate bearing, barrier-free material handling is guaranteed. Fully enclosed tank prevents any material leakage.
BENEFITS
product-friendly transport
high conveyance rates realizable
large product grain size conveyable
easy installation and unload
cheap price - factory direct sales
gentle and continuous material transport
![[field:title/]](/uploads/190802/1-1ZP2103242M2.jpg)
| Solid waste treatment | Pulp |
| Environmental Protection | Chemical |
| Building Materials | Agriculture |
Technical parameters
In addition to the specifications of the following technical parameters, provide different customized services according to your needs!
| WLS type | Screw pitch(mm) | Rotation speed(r/min) | Transportation volume QΦ=0.33(m3/h) |
| 100 | 100 | 120 | 1.9 |
| 160 | 160 | 90 | 5.7 |
| 200 | 200 | 75 | 18 |
| 250 | 250 | 75 | 18 |
| 315 | 315 | 60 | 29.1 |
| 400 | 355 | 60 | 52.9 |
| 500 | 400 | 45 | 69.8 |
| 630 | 450 | 45 | 125 |
| 800 | 500 | 35 | 174 |
| 1000 | 560 | 30 | 261 |
| 1250 | 630 | 20 | 305 |
